Understanding the Execution Process of a C Program: Translation, Linking, and Loading

Model of Execution

Hey fellow coders! Today, let's unravel the intricate journey a C program takes from its inception to execution. Buckle up as we explore the stages of translation, linking, and loading, shedding light on the crucial steps that bring your code to life. These are the three main steps that transform your source code into an executable file that can run on your computer.

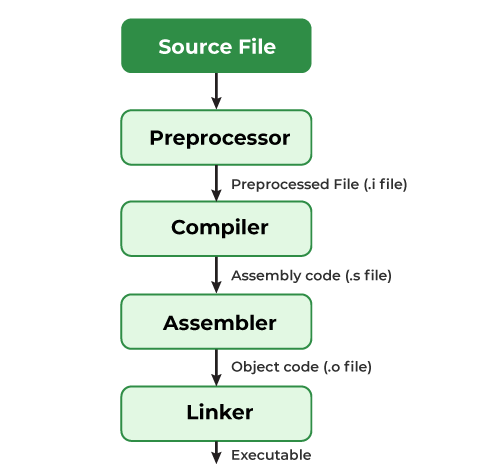

Translation: From Source Code to Intermediate Code

The journey begins with your source code, brimming with potential.

The first step is to translate your source code into a low-level language that the computer can understand. This is done by the preprocessor and the compiler. The compiler, the first stop on our journey, can't comprehend those pesky # directives. That's where the preprocessor steps in, replacing # directives such #include or #define with the actual declarations of the functions or variables that are defined in the header files, and removes the # symbol. This results in an expanded source code or an intermediate code, which is saved with a .e extension. The compiler then takes this intermediate code and checks it for any syntax errors. If any are found, it's back to the source code for edits. If not, the compiler converts the code into assembly language, which is a low-level language that uses mnemonics to represent instructions for the processor. The assembly code is saved with a .asm extension.

Assembly: From Assembly Code to Object Code

Enter the assembler. This wizard transforms the assembly language into object code, which carries the '.o' or '.obj' extension. We're steadily progressing toward a runnable program.

Linking: Uniting Object Code and System Libraries

The second step is to link the assembly code with the system libraries that contain the definitions of the predefined functions that are used in your program, such as printf or scanf. These functions are not part of your C program, but they are part of the C libraries that are provided by your operating system or compiler. The linker is responsible for combining all the assembly code files and the system libraries into one executable file that contains all the instructions and data for your program. The executable file is saved with a .exe extension.

Loader: Bringing the .exe to Life

The third step is to load the executable file into the main memory (RAM) of your computer, where it can be accessed by the processor and executed. This is done by the loader, which is a part of your operating system that allocates memory space for your program and transfers it from the disk to the RAM. The loader also sets up some information for your program, such as its entry point (where it starts executing), its stack (where it stores temporary data), and its heap (where it allocates dynamic memory). Once the loading is done, your program is ready to run.

Conclusion: Ready, Set, Execute!

And there you have it – the intricate dance of translation, linking, and loading that transforms your C code into a functional program. Remember, the journey doesn't end here; subscribe to my YouTube channel @flexteck and follow my Substack for more C programming tutorials. Happy coding, and may your programs run flawlessly! 🚀💻

Stay tuned for more insights and coding adventures!
